Beyond the Mouse 2010 - The geoscientist's computational chest.

9. Live Coding: Applied Unix Tools

"Programming is legitimate and necessary academic endeavor."
Donald E. Knuth

Lecture

No lecture slides, this website is the summary. You'll find all necessary scripts and the example database in this archive as tar.gz and zip.

Objective

The goal of the lecture will be the automated extraction of GPS positions (provided in 5 min intervals) from a user specified database for all individual GPS stations. Those data should go into temporary files so that they can be plotted employing our previously developed Matlab scripts. Automatic plotting and saving of the created figures needs to happen at the end of the program run!

Data

Our database contains 8 columns: station-id | decimal day of year | Ref-lat | Ref-lon | Ref-height | lat | lon | height, where 'ref' means 'reference' but this is not very important. Here is an excerpt from the database (Bezy2009.dat):

(column: 1         2                 3              4             5                    6               7            8     )
	BZ09  347.00000000      55.982467208   160.581416741  2539.8446           55.982466363   160.581417608  2539.3093
	BZ06  347.00000000      55.899597940   160.550529524  1715.9546           55.899597537   160.550530545  1715.4075
	BZ04  347.00000000      55.932567373   160.553716243  1671.4151           55.932566574   160.553717359  1670.7805
	BZ03  347.00000000      55.958141918   160.556598697  2071.7480           55.958140810   160.556599910  2071.1410
	BZ01  347.00000000      55.978378714   160.532566368  1998.8059           55.978377766   160.532567265  1998.1650
	BZ09  347.00347222      55.982467208   160.581416741  2539.8446           55.982466421   160.581417721  2539.3144
	BZ06  347.00347222      55.899597940   160.550529524  1715.9546           55.899597472   160.550530596  1715.4071
	BZ04  347.00347222      55.932567373   160.553716243  1671.4151           55.932566597   160.553717350  1670.7774
	BZ03  347.00347222      55.958141918   160.556598697  2071.7480           55.958140821   160.556599954  2071.1364
	BZ01  347.00347222      55.978378714   160.532566368  1998.8059           55.978377777   160.532567326  1998.1603
	BZ09  347.00694444      55.982467208   160.581416741  2539.8446           55.982466364   160.581417762  2539.3156
	BZ06  347.00694444      55.899597940   160.550529524  1715.9546           55.899597474   160.550530624  1715.4122
	BZ04  347.00694444      55.932567373   160.553716243  1671.4151           55.932566585   160.553717396  1670.7777
	BZ03  347.00694444      55.958141918   160.556598697  2071.7480           55.958140875   160.556599993  2071.1293


For each individual station we want the contents of columns 2,6,7, and 8; namely the time for which a certain lat, lon, and height were determined. We'll achieve our task in little steps; starting with simple tasks and expanding these to fully meet the objective.

Step 1: Extract data for one station

Let's start fairly simply and select all the data we have for one station, say BZ09. We can do this using the tools grep and awk. grep will allows us to decimate the rows to rows only containing the string 'BZ09' which obviously is a unique identifier. On the command line, call:

	$> grep BZ09 Bezy2009.dat


The resulting output should be similar to this:

	BZ09  360.98263889      55.982467208   160.581416741  2539.8446           55.982466743   160.581417701  2539.2673
	BZ09  360.98611111      55.982467208   160.581416741  2539.8446           55.982466747   160.581417731  2539.2629
	BZ09  360.98958333      55.982467208   160.581416741  2539.8446           55.982466823   160.581417750  2539.2598
	BZ09  360.99305556      55.982467208   160.581416741  2539.8446           55.982466877   160.581417780  2539.2548
	BZ09  360.99652778      55.982467208   160.581416741  2539.8446           55.982466901   160.581417808  2539.2472


Now we can pipe this output into awk to select the rows we want and redirect the output into a new file BZ09.dat

	$> grep BZ09 Bezy2009.dat | awk '{print $2,$6,$7,$8}' > BZ09.dat


Here are the last 5 lines of the new file BZ09.dat:

	$> tail -n 5 BZ09.dat
	360.98263889 55.982466743 160.581417701 2539.2673
	360.98611111 55.982466747 160.581417731 2539.2629
	360.98958333 55.982466823 160.581417750 2539.2598
	360.99305556 55.982466877 160.581417780 2539.2548
	360.99652778 55.982466901 160.581417808 2539.2472


You see that these data are the same as the ones given above. Excellent! Let's put this into a shell script, say live_script.sh:

	#!/bin/tcsh

	grep BZ09 Bezy2009.dat | awk '{print $2,$6,$7,$8}' > BZ09.dat


(Don't forget to set the premissions for this file to executable: > chmod +x live_script.sh.) This one line of code combines two extremely powerful tools for data handling as well as two very important concepts (piping, output redirection) for shell scripting. If you're doing any data handling in Unix these concepts will be used over and over again and you should familiarize yourself with these! PLAY WITH THEM!

The above script is a rather static, i.e. too specific, non-general, shell script that works on exactly one database using one station. We'll change that in the next step.

Step 2: Extract data for all stations in the database

To work on all stations that have data in the database, we could just manually extract the station names. What, though, if we want to work on various databases which hold data for differently named stations? Well, we could try to automatically create the list of stations from the database using awk and sort:

	$> awk '{print $1}' Bezy2009.dat | sort -u
	BZ01
	BZ03
	BZ04
	BZ06
	BZ09


Here, awk extracts the first column of the database - the station names. sort -u will output only the first occurence of a string it is being handed, i.e. we get a unique list. Sweet. In our shell script we will run the above command inside backticks to have it executed in a subshell. The resulting station list is being saved to a variable sta_list:

	#!/bin/tcsh

	# define the database we want to work on
	set db = Bezy2009.dat

	# get a unique station list from our database
	set sta_list = `awk '{print $1}' $db | sort -u`

	# iterate over the station list and create a new data file for each site
	foreach sta ( $sta_list )
		echo "Working on station $sta ..."
		grep $sta $db | awk '{print $2,$6,$7,$8}' > ${sta}.dat
	end


I incorporated a few more changes here. First, I created a variable data which holds the name of the database we want to work on. I do this, because the database now comes up in two places and at some point later on you'll certainly forget to change it in one place. This creates all sorts of havoc and confusion, cussing and swearing, and I want to prevent that. Second, I also created a loop over the values in sta_list which creates data files for all GPS stations we found in the database.

Step 3: Allow to set the database on the command line

Another step of generalization in our script now is to get rid of the definition of the database Bezy2009.dat. Being able to define this when calling the script on the command line certainly adds a lot of flexibility, so we'll just do this. We gotta be careful though, since now the user has a way to interact with our script which usually means trouble. Therefore, we need to add a few more tests: Did the user give a command line argument at all? Did the user give a command line argument that exists? See comments in script:

	#!/bin/tcsh

	# The $# variable contains the number of command line arguments given
	# Since we want exactly one argument, we test for this
	if( $# != 1) then
		echo "USAGE: $0 DATABASE"
		exit 1
	endif

	# define the database we want to work on, first command line argument
	set db = $1

	# now we need to check whether the file exists, or else give an error:
	if (-e $data) then
		# tell the user what we're working on.
		echo "Using database: $data"

		# get a unique station list from our database
		set sta_list = `awk '{print $1}' $db | sort -u`

		# iterate over the station list and create a new data file for each site
		foreach sta ( $sta_list )
			echo "Working on station $sta ..."
			grep $sta $db | awk '{print $2,$6,$7,$8}' > ${sta}.dat
		end
	else
		echo "$0 ERROR: File '$data' does not exist."
		exit 2
	endif


Recall that $0 is the command name as given on the command line, $1 is the first argument on the commandline. Here are a few use cases; the first one with no arguments, the second one with a file that doesn't exists, and the last one with our trusty database:

	$~> live_script.sh
	USAGE: ./live_script.sh DATABASE
	$~> live_script.sh bla.dat
	./live_script.sh ERROR: File 'bla.dat' does not exist.
	$~> live_script.sh Bezy2009.dat
	Using database: Bezy2009.dat
	Working on station BZ01 ...
	Working on station BZ03 ...
	Working on station BZ04 ...
	Working on station BZ06 ...
	Working on station BZ09 ...


That's a pretty useful script; with only three lines of code we can make it amazing.

Step 4: Plot data for each site using Matlab

MATLAB offers to run at the commands defined at the command line with the "-r" option:

	$~> matlab -nojvm -nosplash -r "disp 'hello remote matlab'; exit;"


The -nojvm -nosplash flags prevent Matlab from starting the fancy visual interface and prompting the splash screen, respectively. The above call will result in:

                          < M A T L A B (R) >
                 Copyright 1984-2008 The MathWorks, Inc.
                       Version 7.7.0.471 (R2008b)
                            September 17, 2008

  To get started, type one of these: helpwin, helpdesk, or demo.
  For product information, visit www.mathworks.com.

hello remote matlab


It will simply execute the disp command and display hello remote matlab. After this the next command can be executed; here it is exit to shutdown MATLAB.

To make use of this functionality and get our data automatically plotted, I altered the Matlab script plot_stations.m which we created in Lab 04. I defined it as a function which takes the station cell array as input argument (check code to see what I mean). This will enable us to call this function from the command line:

	$~> matlab -nojvm -nosplash -r "plot_stations({'BZ09', 'BZ01'}); exit;"


It should be easy to see that we can create a string that defines the cell array we have to hand to plot_stations:

	#!/bin/tcsh

	# The $# variable contains the number of command line arguments given
	# Since we want exactly one argument, we test for this
	if( $# != 1) then
		echo "USAGE: $0 DATABASE"
		exit 1
	endif

	# define the database we want to work on, first command line argument
	set db = $1

	# now we need to check whether the file exists, or else give an error:
	if (-e $data) then
		# tell the user what we're working on.
		echo "Using database: $data"

		# get a unique station list from our database
		set sta_list = `awk '{print $1}' $db | sort -u`

		# define empty string which will eventually hold all stations to define
		# a matlab cell array
		set matlab_cell = " "

		# iterate over the station list and create a new data file for each site
		foreach sta ( $sta_list )
			echo "Working on station $sta ..."
			grep $sta $db | awk '{print $2,$6,$7,$8}' > ${sta}.dat

			# append the current station to the matlab_cell string; $sta needs to be
			# in single quotes to indicate that it's a string in Matlab. If the
			# single quotes aren't given, MATLAB will think, e.g. BZ01 is a variable
			set matlab_cell="$matlab_cell '$sta'"

		end

		# once all the data files are created, we can call MATLAB to update the plots
		# Note that $matlab_cell needs curly braces around it, to indicate it's a
		# cell array.
		matlab -nojvm -nosplash -r "plot_stations( { $matlab_cell }, 1 ); exit; "

	else
		echo "$0 ERROR: File '$data' does not exist."
		exit 2
	endif

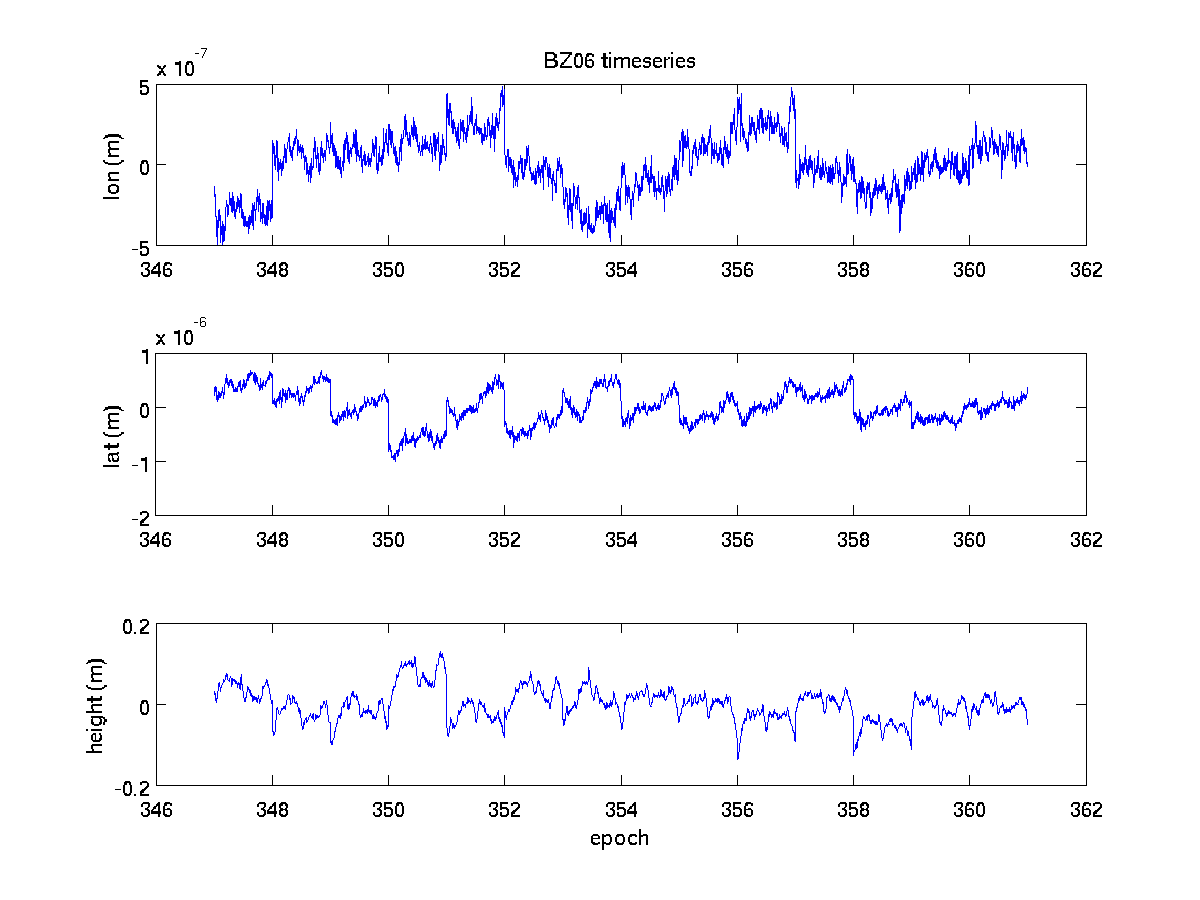

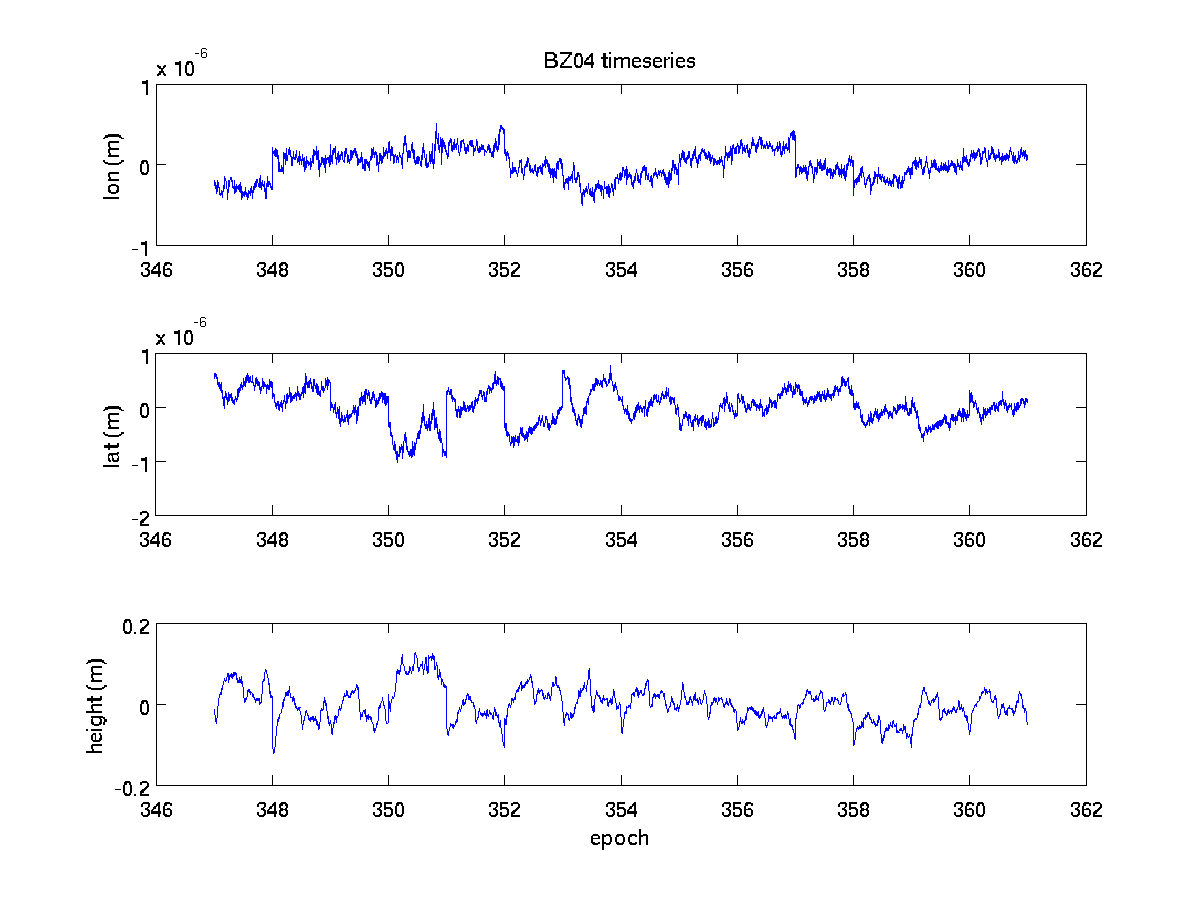

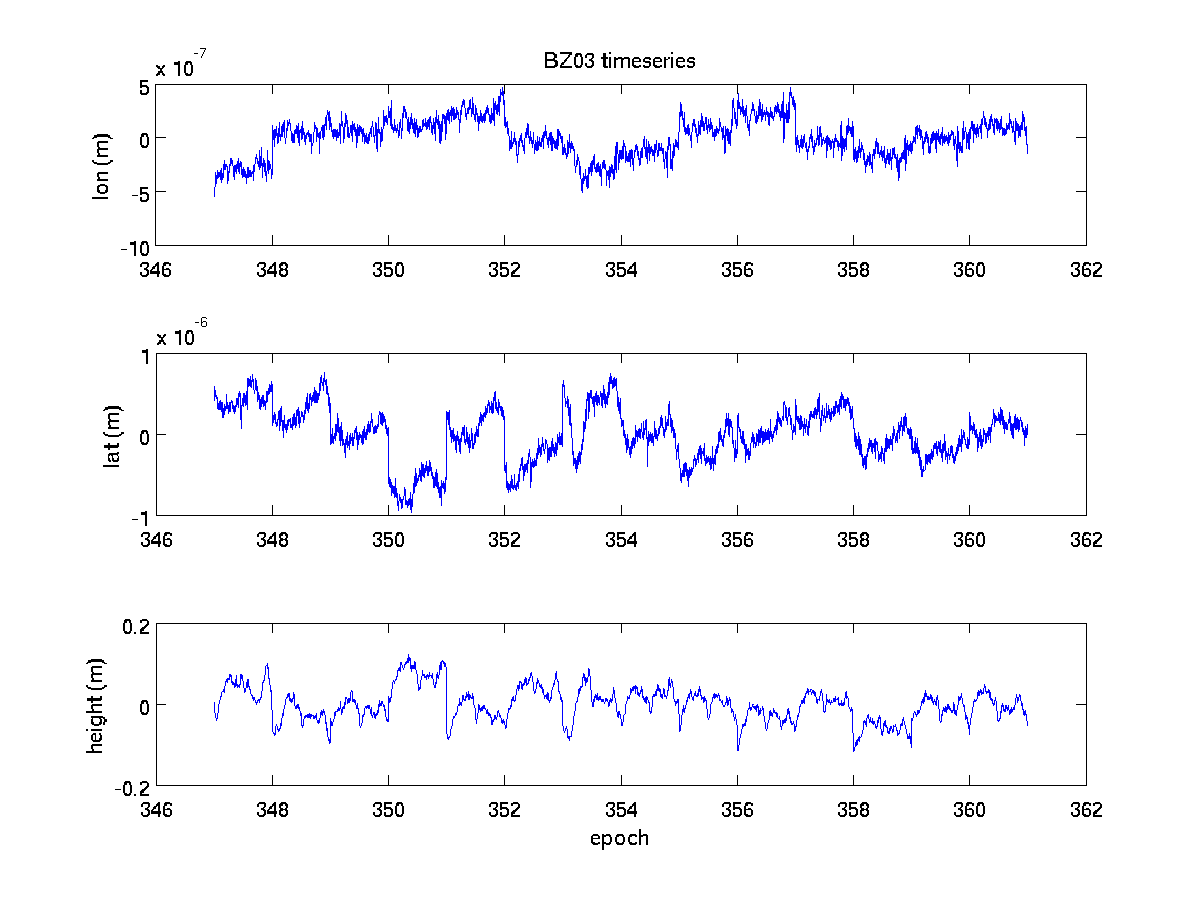

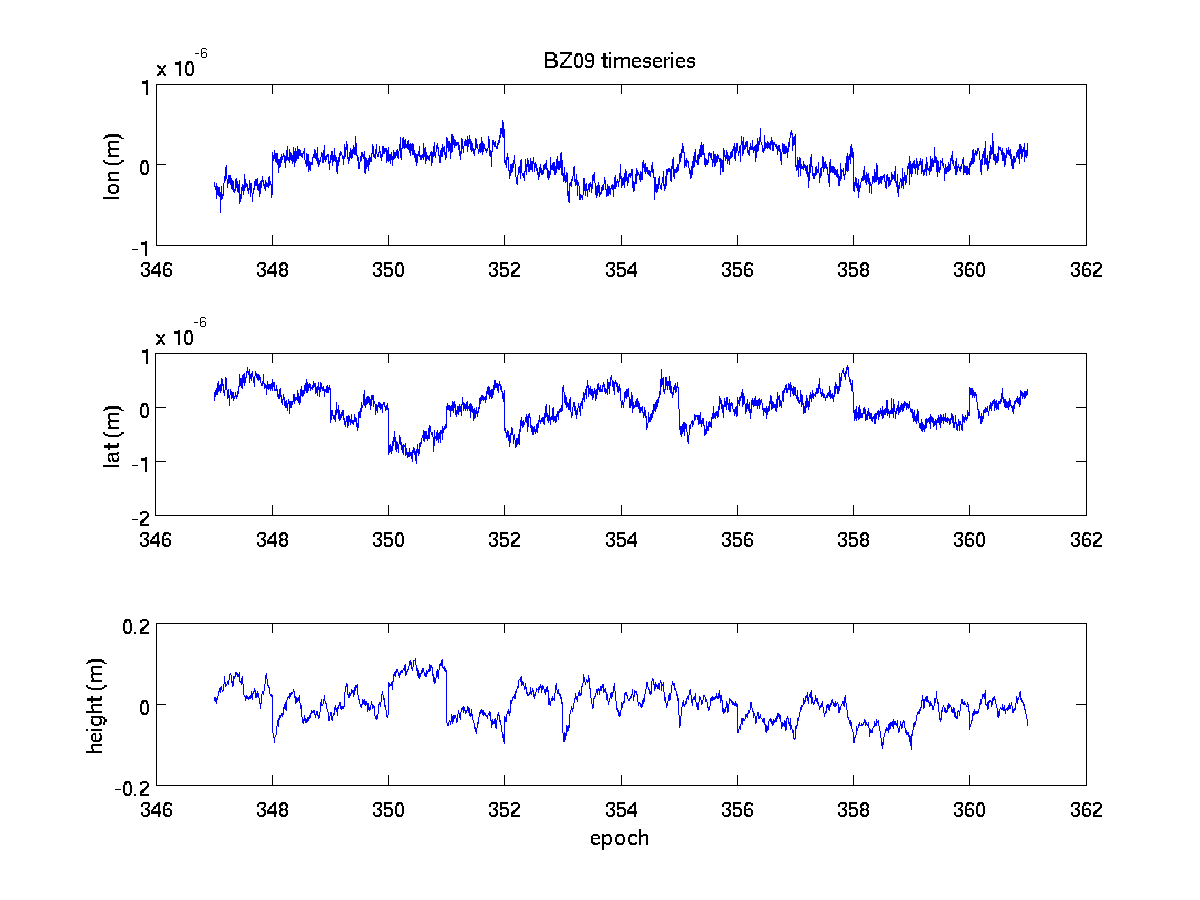

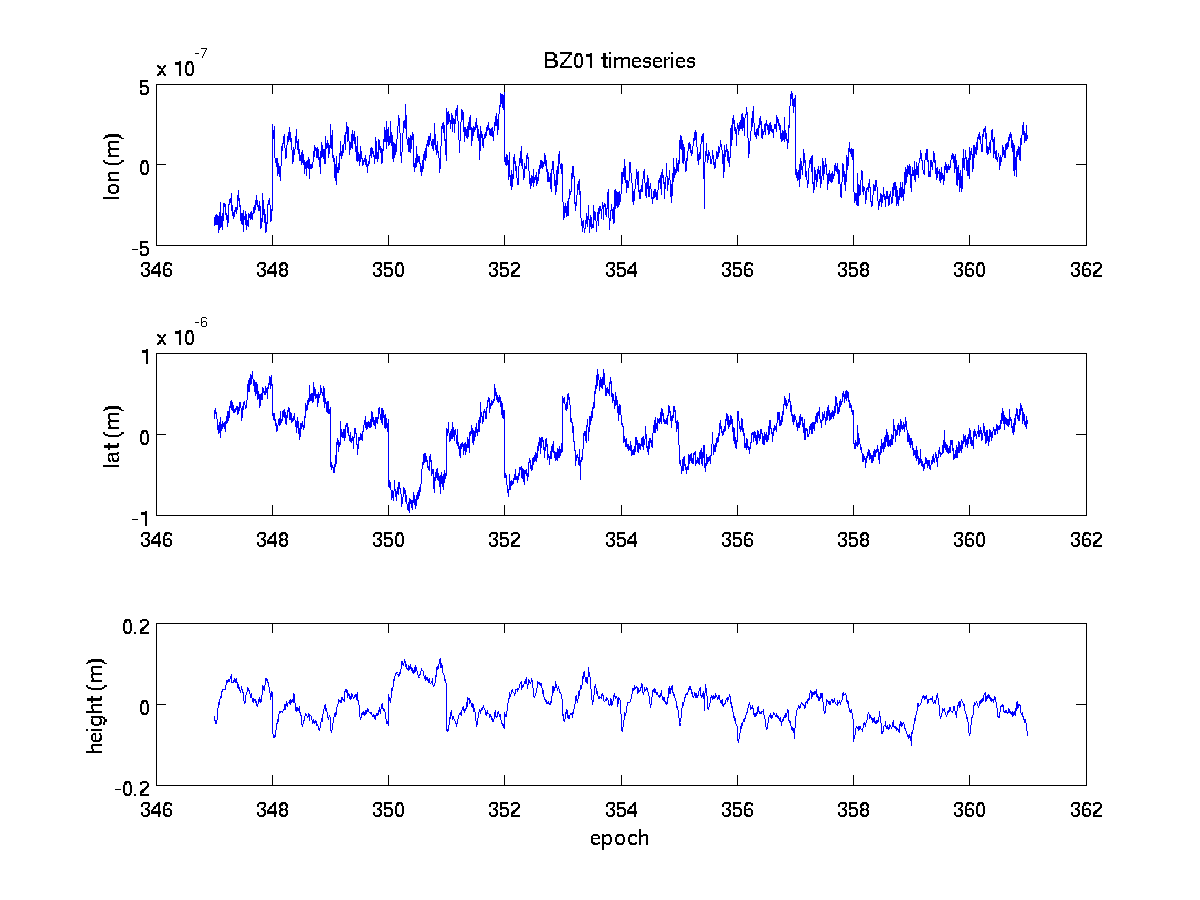

In your directory you'll now find data files for all the GPS stations that end in .dat and the figures which end in .eps for printing and .png for web-publishing (click on figures to enlarge):
