DatabaseManager Class Reference

#include <DatabaseManager.h>

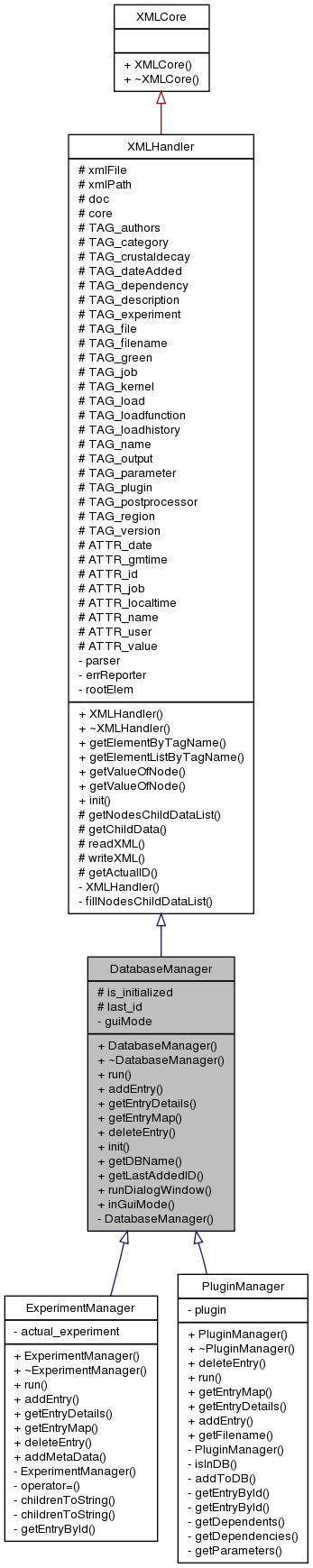

Inheritance diagram for DatabaseManager:
Inheritance graph
[legend]

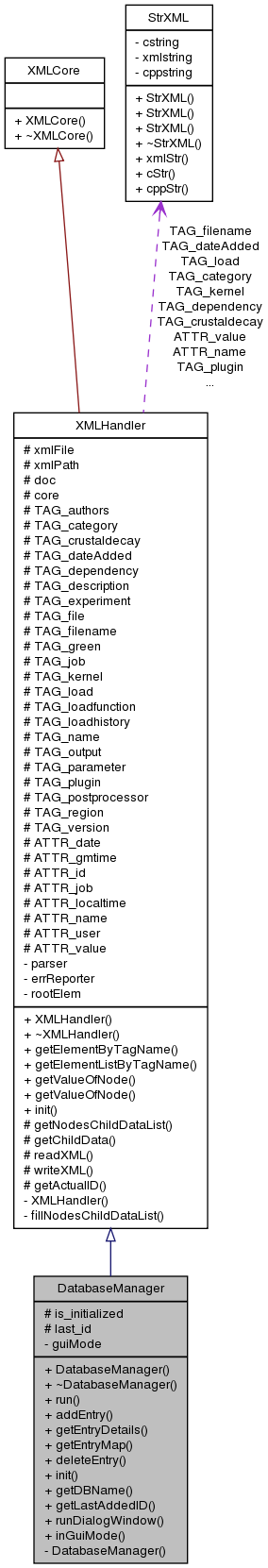

Collaboration diagram for DatabaseManager:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 DatabaseManager (const char *path)
virtual ~DatabaseManager ()
virtual void run ()=0
 start the manager
virtual void addEntry (string ident, DOMNode *parent=0)=0
 add database entry
virtual string getEntryDetails (int)=0
 returns a formatted string for display containing all details listed for plugin 'id' in db
virtual multimap< string, map
< int, string > >
getEntryMap ()=0
 returns a formatted string for display containing all details listed for plugin 'id' in db
virtual bool deleteEntry (int)=0
 removes plugin from database. checks before, whether any other plugin depends on ID
virtual void init ()
 initialize database
string getDBName ()
 returns database name
int getLastAddedID ()
 returns last id of an item added to the database
void runDialogWindow (string, bool)
 show dialog window;
bool inGuiMode ()
 has database manager a Dialog Window open?

Protected Attributes

bool is_initialized
int last_id

Private Member Functions

 DatabaseManager (const DatabaseManager &x)
 hidden copy constructor - we do not want to accidentially copy objects

Private Attributes

bool guiMode

Detailed Description

manages a database


Constructor & Destructor Documentation

DatabaseManager::DatabaseManager ( const DatabaseManager x  )  [private]

hidden copy constructor - we do not want to accidentially copy objects

DatabaseManager::DatabaseManager ( const char *  path  )
virtual DatabaseManager::~DatabaseManager (  )  [inline, virtual]

Member Function Documentation

virtual void DatabaseManager::addEntry ( string  ident,
DOMNode *  parent = 0
) [pure virtual]

add database entry

Implemented in ExperimentManager, and PluginManager.

Referenced by Dialog::addClicked().

virtual bool DatabaseManager::deleteEntry ( int   )  [pure virtual]

removes plugin from database. checks before, whether any other plugin depends on ID

Implemented in ExperimentManager, and PluginManager.

Referenced by Dialog::deleteClicked().

string DatabaseManager::getDBName (  )

returns database name

return filename of the database with absolute path

References XMLHandler::xmlFile.

virtual string DatabaseManager::getEntryDetails ( int   )  [pure virtual]

returns a formatted string for display containing all details listed for plugin 'id' in db

Implemented in ExperimentManager, and PluginManager.

Referenced by Dialog::showDetails().

virtual multimap<string, map<int, string> > DatabaseManager::getEntryMap (  )  [pure virtual]

returns a formatted string for display containing all details listed for plugin 'id' in db

Implemented in ExperimentManager, and PluginManager.

Referenced by Dialog::setModelData().

int DatabaseManager::getLastAddedID (  )

returns last id of an item added to the database

return id of last entry that's been added to the database

References last_id.

Referenced by Dialog::addClicked().

bool DatabaseManager::inGuiMode (  )

has database manager a Dialog Window open?

References guiMode.

void DatabaseManager::init (  )  [virtual]

initialize database

read XML file and read plugins from there into a structured list

Implements XMLHandler.

References is_initialized, and XMLHandler::readXML().

Referenced by SimulationCore::init(), SimulationCore::installPlugin(), SimulationCore::runExperimentManager(), and SimulationCore::runPluginManager().

virtual void DatabaseManager::run (  )  [pure virtual]

start the manager

Implemented in ExperimentManager, and PluginManager.

void DatabaseManager::runDialogWindow ( string  title,
bool  addButton
)

show dialog window;

create Dialog window and switch into guiMode, run dialog window

References d, and guiMode.

Referenced by PluginManager::run(), and ExperimentManager::run().


Member Data Documentation

bool DatabaseManager::guiMode [private]

Referenced by inGuiMode(), and runDialogWindow().

function init() has been called

Referenced by init(), PluginManager::run(), and ExperimentManager::run().

int DatabaseManager::last_id [protected]

The documentation for this class was generated from the following files:

Generated on Tue Feb 16 15:18:33 2010 for CrusDe by  doxygen 1.6.1-20091004
