Lab 6: Matlab I/O 2

Lab slides

none.

Exercise 1:

Download these two files and store them in the same directory:

• temperature data for the last 30 years at station Fairbanks Int'l Airport
• a script which creates a basic plot

Execute the script such that the figure appears on your screen. It looks a little weird with spikes; like a random fence. We'll take care of that later. For now, I want you to discover the properties of the figure/axes you can change with the property editor: in the figure window menu go to 'edit'->'axes properties' and/or 'figure properties'. Try to find a button that says 'More Properties'; change things and see what happens. Take note of the respective names of the properties; they are similar to what you would use as parameters in get/set. Also try adding a title, and labels for x and y axis. There's nothing to turn in, just keep in mind that basically every figure property you can change in the Figure Editor can be changed from the command line/ your scripts.

Exercise 2:

Now we're getting a little more serious; the display of the data as shown in the figure wrong, i.e. does not correspond to the actual timeseries in the file! We've got to correct for this and make things look nicer. If you check line 5 in fai_temp.m you will see that I plot temps over dates where dates is a vector that holds the dates of temperature measurements in the format 'YYYYMMDD' (check FAI_temps.txt if you don't believe me). Matlab does not know anything about the semantics of the dates vector for the x-axis and assumes dates contains integer values. This is where the weird spaces in your figure come from: we have big gaps from 1980-12-31 to 1981-01-01, i.e. 19801231...19810101, and 19811231 - 19820101, and so on. Matlab assumes those gaps are values and plots a continuous x-axis which results in it reserving space on the x-axis. That's not wrong and also not too bad, but by default plot connects all data points with a line. Now everybody thinks there's data where you have none.

This becomes clear when you replace line 5 in fai_temp.m with: plot(dates, temps, '.'). Understood? OK. Change it back!

Let's fix this now! Matlab's internal representation of times is using serial date numbers. Instead of using dates as given in the original file, let's do this:

• convert dates from integer representation into strings using num2str
• now convert the resulting string array into serial date numbers using datenum, and the formatting string 'yyyymmdd'. Save this to a variable d_nums
• Now, instead of calling plot(dates, temps); replace dates with the serial date numbers you just calculated. You should get a nice sinusoidal temperature series.

You might notice that the tick labels are in strange places. Let's try having them every 5th year. There are many ways of doing this. For the most generic one we only need to know that the date format is 'yyyymmdd.' To get tick marks in the style '1985 - 1990 - 1995 ... ' without actuall knowing upper and lower bounds of the time series, we can do this (we treat the yyyymmdd dates as actual numbers here):

• Use min on dates, to find minumum of the timeseries
• Divide this minimum by 100,000 and round down using floor.
• Multiply the 'floored' value by 10 and you have the lower decadal bound.
• Do the same to find the upper decadal bound, but use max and ceil instead of min and floor
• You have the upper and lower bounds of your date tick vector; create an array that increases in steps of 5
• Convert this vector to Matlab datenums like you've already done above. Adjust the date formatting string to that of four digit years, though!
• Now, call set(gca, 'XTick', ticks) to set your tickmarks on the x-axis to the dates you desired. (Well, it's really just me desiring that, I know)
• Note that 'out of bounds' tickmarks aren't placed - that's a result of the axis tight

Alright. Now YOU know that your x-axis tick spacing is 5 years, but it's not really obvious in the figure as the datenumber labels haven't been converted to a reasonable string yet. We should change the tick labels!

• call set just like above, but this time change the property 'XTickLabel' to the result of calling datestr on the serial date number array ticks you create above.
• Your labels should appear in the format: '01-Jan-1985' ... '01-Jan-2010'. You can change this format by either giving one of the format numbers from 1-31 as second parameter for datestr OR giving a freeform format similar to 'yyyy-mm-dd'. See datestr documentation for details. Play with different formats and find one you like.

Great, now that we know what we're dealing with we can add title, x, and y labels. I recommend you to use '\circF' as part of your ylabel argument to clarify that temperatures are in degrees Fahrenheit (we know that from experience - the numbers in the file certainly aren't degrees Celcius, they remain undocumented though).

• In your title,xlabel,ylabel calls, set the 'FontSize' to 12
• In your title call, also set the 'FontWeight' to 'bold'

If you want to get a better idea about how the temperature evolved over this long time, you could smooth it using a moving average approach over a period of 365 days:

• apply the smooth function which is part of the Curve Fitting Toolbox to temps and give the respective span to 365.
• I plotted the result in red with a 'LineWidth' 2 over d_nums
• Don't forget to switch hold on
• You may want to add a legend

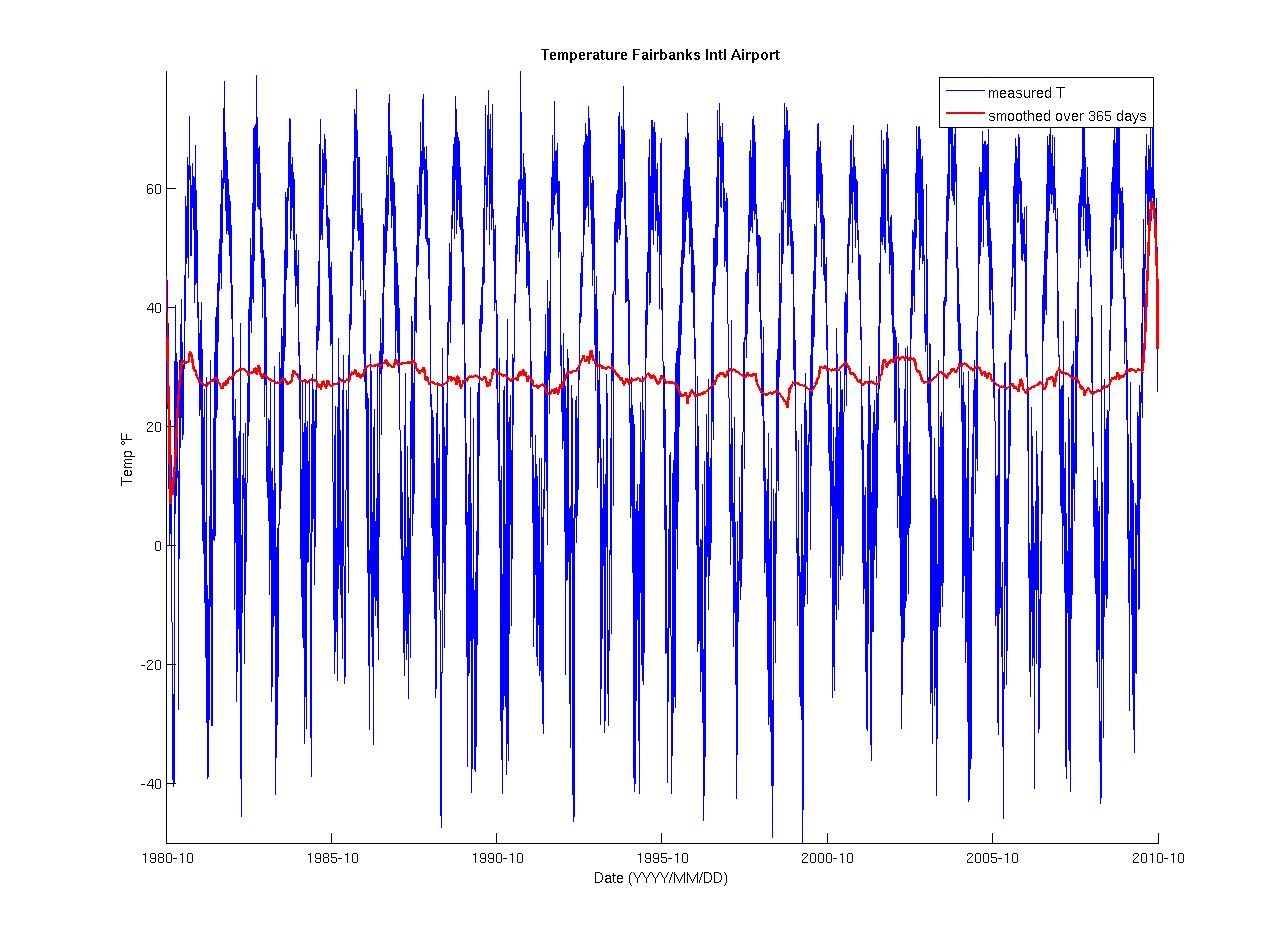

Your final figure should look similar to this:

Exercise 3: Setting axes

Now, with very few steps you can add a lot of extra information to that figure. Let's add a spectrogram. Here's what I want you to do:

• save the above script under a new name, say fai_spec.m
• just prior to the first plot command, add an axes call in which you set the position property to something reasonable. Make the height of the axes not larger than 30% of the figure. I positioned my axes 10% from the left border, 65% from the bottom, made it 89% wide and 30% high - the percentages are in relation to the figure dimensions.
• Now go to the bottom of your script (i.e., the very end) and create another axes; keep the height below 50% of the figure. I left 10% of the figure width as space between left figure and axes edges as well as 10% of the figure height from the bottom of the figure to the bottom of the axes. Width is again 89% and height is 50%.
• Now plot the spectrogram: spectrogram(temps, 180, 90, 128, 1/(24*60*60), 'yaxis') . Briefly explain what the parameters of this command mean (it's sometimes very useful to look at timeseries this way).
• Pretty simple, he?

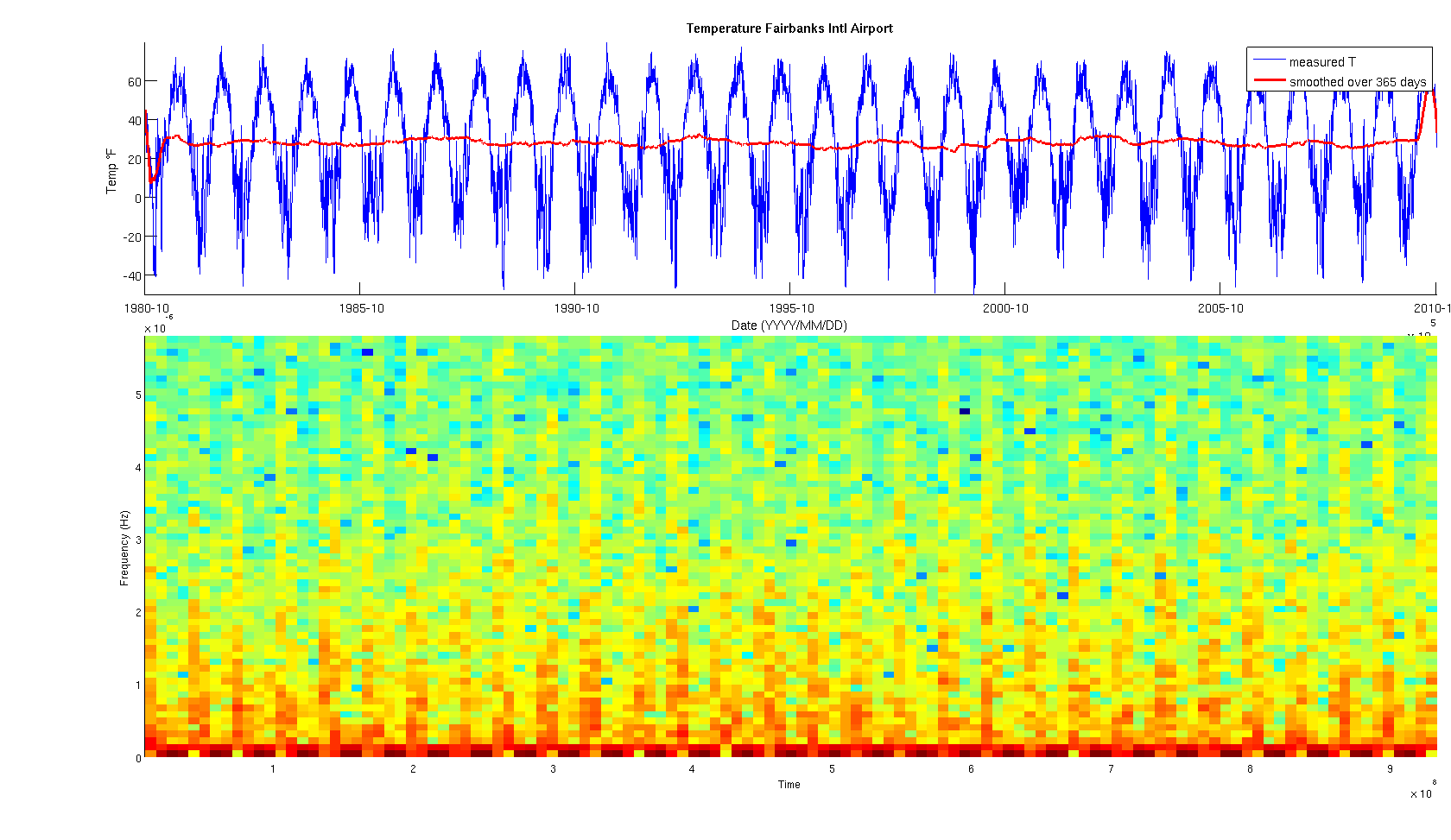

Your final figure should look similar to this:

Helpful Matlab Functions:

Here is a list that might be of help.

• axes Properties
• axes
• ceil
• datenum: Convert a string into a serial date number
• datestr: Convert a serival date number into a formatted date string
• floor
• max
• min
• set, get graphics' handle properties
• xlabel, ylabel, title
• spectrogram: Have a spectrogram plotted
• smooth: moving average
