plugin_src/green/pinel_hs_elastic.c File Reference

#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include "crusde_api.h"

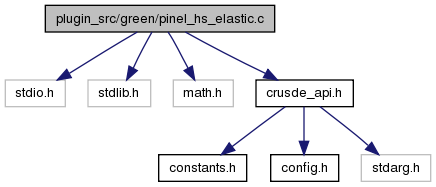

Include dependency graph for pinel_hs_elastic.c:

Functions

const char * get_name ()
const char * get_version ()
const char * get_authors ()
PluginCategory get_category ()
const char * get_description ()
void register_parameter ()
 Register parameters this Green's function claims from the input.
void register_output_fields ()
 Register output fields for spatial directions this Green's function calculates.
void request_plugins ()
void init ()
 Initialize members that depend on registered values.
void run ()
 Not used in this plugin, left empty!
void clear ()
 Clean-up before this plug-in gets unloaded.
int get_value_at (double **result, int x, int y)
 Returns the Green's Function value at Point(x,y).

Variables

double * p_g
 gravity [m/s^2]
double * p_E
 Young's Modulus [GPa].
double * p_nu
 Poisson's ratio [-].
double g
 gravity [m/s^2]
double E
 Young's Modulus [GPa].
double nu
 Poisson's ratio [-].
double U_vert_const
 Constant part of the vertical displacement equation.
double U_hori_const
 Constant part of the horizontal displacement equation.
double xx
double yy
double theta
double r
int quadrant
short sin_sign
short cos_sign
int x_pos
int y_pos
int z_pos
double backpack [3]

Function Documentation

void clear (  )

Clean-up before this plug-in gets unloaded.

Yet, there is nothing to free here.

const char* get_authors (  )
PluginCategory get_category (  )

References GREEN_PLUGIN.

const char* get_description (  )
const char* get_name (  )
int get_value_at ( double **  result,
int  x,
int  y
)

Returns the Green's Function value at Point(x,y).

TODO!

Parameters:
x The x-Coordinate of the wanted value.
y The y-Coordinate of the wanted value.
Returns:
error code

References cos_sign, crusde_get_gridsize(), crusde_get_quadrant(), NOERROR, quadrant, r, sin_sign, theta, U_hori_const, U_vert_const, x_pos, xx, y_pos, yy, and z_pos.

const char* get_version (  )
void init (  )

Initialize members that depend on registered values.

This function must not be called before register_parameter() unless none of the necessary values depends on parameters provided by the user, which are only set after they have been registered. This function is called some time after register_parameter().

Here U_vert_const and U_hori_const are initialized as follows:

\[ U_{z,const} = \frac{g}{\pi} \frac{(1-\nu ^2)}{E} \]

\[ U_{r, const} = -\frac{g}{2\pi} \frac{(1+\nu)(1-2\nu)}{E} \]

References E, g, nu, p_E, p_g, p_nu, PI, U_hori_const, and U_vert_const.

void register_output_fields (  )

Register output fields for spatial directions this Green's function calculates.

This function calls crusde_register_output_field defined in crusde_api.h to register output field in the following order:

  1. x, y, z (horizontal-x, horizontal-y, vertical).

References crusde_info(), crusde_register_output_field(), get_name(), X_FIELD, x_pos, Y_FIELD, y_pos, Z_FIELD, and z_pos.

void register_parameter (  )

Register parameters this Green's function claims from the input.

This function calls crusde_register_green_param() defined in crusde_api.h to register references to parameters this Green's function will need to operate properly. In case an XML is used to configure the experiment, the reference to this parameter will be identified by the string passed as second argument to register_green_param().

This function registers the references in the following order:

  1. g, XML config identifier is "g" SI-unit: [m/s^2]
  2. E, XML config identifier is "E" SI-unit: [GPa]
  3. nu XML config identifier is "nu" SI-unit: [-]
See also:
register_green_param()
register_parameter() (temp_plugin.c.tmp)

References crusde_register_param_double(), get_category(), p_E, p_g, and p_nu.

void request_plugins (  )
void run (  )

Not used in this plugin, left empty!


Variable Documentation

double backpack[3]
short cos_sign

Referenced by get_value_at().

double E

Young's Modulus [GPa].

Referenced by init().

double g

gravity [m/s^2]

Referenced by InputHandler::getGridSize(), and init().

double nu

Poisson's ratio [-].

Referenced by init().

double* p_E

Young's Modulus [GPa].

Referenced by init(), and register_parameter().

double* p_g

gravity [m/s^2]

Referenced by init(), and register_parameter().

double* p_nu

Poisson's ratio [-].

Referenced by init(), and register_parameter().

int quadrant

Referenced by get_value_at().

double r
short sin_sign

Referenced by get_value_at().

double theta

Referenced by get_value_at().

double U_hori_const

Constant part of the horizontal displacement equation.

Referenced by get_value_at(), and init().

double U_vert_const

Constant part of the vertical displacement equation.

Referenced by get_value_at(), and init().

int x_pos
double xx

Referenced by get_value_at().

int y_pos
double yy

Referenced by get_value_at().

int z_pos
